8" Sunlight Readable LCD Industrial Display Monitor with VGA & AV Inputs

8" Sunlight Readable LCD Display Monitor with VGA & AV Inputs
industrial display monitors  industrial panel mount monitor  large industrial monitors  touch screen rugged monitors for industrial systems  industrial tv monitors  industrial monitor price  touch screen monitor 8 inch HDMI monitor, 8 inch VGA monitor, 8 inch DVI monitor https://www.xenarc.com industrial display monitors  industrial panel mount monitor  large industrial monitors  touch screen rugged monitors for industrial systems  industrial tv monitors  industrial monitor price  touch screen monitor 8" Sunlight Readable LED LCD Display Monitor with VGA & AV Inputs manufactured by Xenarc Technologies Small Form Factor Touchscreen Display Solutions 8" Sunlight Readable LED LCD Display Monitor with VGA & AV Inputs manufactured by Xenarc Technologies Small Form Factor Touchscreen Display Solutions
Description

NOTE: This 8" display unit has been replaced by the 802YH.

In a follow up of the 800 series and the 805 series, Xenarc Technologies Corp. added to its 8" line of industrial touch screen display solutions with the introduction of an 8" LED LCD display monitor with a brightness rating of 1,000NIT.  The high brightness of this 8" display monitor, as well as the ruggedized aluminum casing, makes it ideal for outdoor applications.

This rugged and versatile 8" LCD LED display monitor offers superior readability under direct sunlight or high bright lighting.  With our proprietary technology, we are able to increase the brightness rating to 1,000NIT, and the Contrast Ratio to 500:1.  Sunlight readability is further enhanced by its advanced Anti-Reflective coating.

The brushed, anodized aluminum face plate gives this industrial-grade 8" display monitor a modern yet elegant look. The entire enclosure is constructed with aluminum, making the unit strong and ruggedized.

Why do our 8" LCD LED display solutions outlast others at extreme environments? Why do our 8" display monitors have wider temperature range and wider voltage input range? It is because our mission is to offer Industrial Automators, Integrators and Engineers the best HMI display solutions available. By utilizing high grade display monitor components, this 8" monitor is perfect for industrial, in-car computing applications or any other applications where a small form factor, portable and durable 8" displays are required.  Our 8" LCD LED Monitor displays are designed for applications such as but not limited to:

  • Transportation - Marine, Air, Heavy Vehicles, Mining, Weigh Stations, Fleet Management, Telematics, In-Car Computing, Public Transit, Cargo
  • System Integration - Machinery Controls, Factory Automation, Environmental Monitoring, Home Automation, Military, Smart Home
  • Point of Sale - Hospitality, Digital Signage, Self-Service Kiosks, Outdoor Kiosks and Signage, Casino
  • Data Monitoring - Cloud, IioT, Factory 4.0 IoT, Medical, Logistics, Inventory Management, Oil & Gas/Utilities, Law Enforcement, Broadcasting, Veterinary, First Person View

Features

NOTE: This 8" display unit has been replaced by the 802YH.

  • 1000NIT Sunlight Readable with Long Life LED Backlight
  • Adjustable LED Backlight for nighttime use
  • Anti-Glare Coating
  • VGA Input (15 pin D-SUB) x 1 & Video Input x 2
  • Audio Input x 3 / Built-In Speaker
  • 800x600 Native Resolution, 4x3 Aspect Ratio
  • Solid Capacitors for Improved Durability
  • High Performance Image and Video Signal Processor
  • AISS - Advanced Image-Scaling and Shaping
  • Last Input and Power Setting Memory
  • IR Remote Control
  • Auto Power-On upon signal detection
  • Mirror and Vertical Image Flip
  • Function to Disable Front Button(s) and On Screen Text
  • AV2 Auto Switching for Backup Camera
  • 360° Copper Monitor Stand or U-Shape Mount
  • VESA 75mm Mounting Holes
  • 26-Pin Heavy-Duty Connector with Connector Locking
  • Ruggedized Aluminum Casing
  • Supports 9V DC ~ 36V DC
  • "E" Mark Certified for Automotive use
  • FCC, CE, E13 Certification
  • ROHS Compliant
  • 36 Month/3 Year Warranty
  • 30 Day No dead Pixel Guarantee

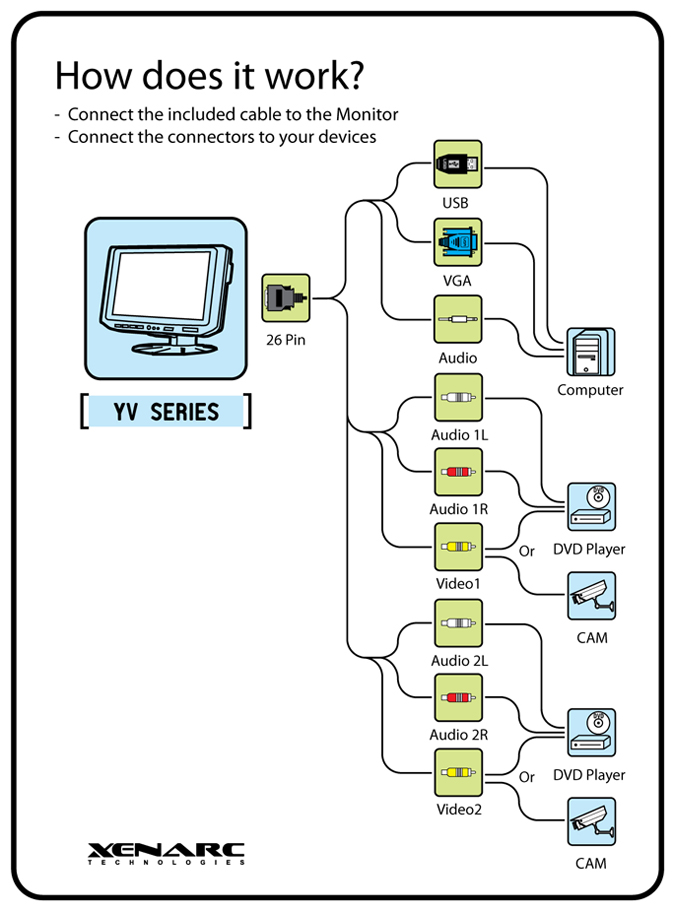

Function Diagram
8" Sunlight Readable LCD Display Monitor with VGA & AV Inputs
Package Contents

NOTE: This product has been replaced by the 802YH.

  • Copper Monitor Stand or U-Shape Mount
  • AC Adaptor or Cigarette Lighter Car Adaptor or 5M Power Lead
  • 1.8M Connection Cable (5M version available separately)
Specification

NOTE: This product has been replaced by the 802YH.

  • Screen Size:  Diagonal 8"  (4:3)
  • Physical Resolution: 800 (H)  x 600 (V) SVGA
  • Supported Resolution:  640 x 480 ~ 1600 x 1200
  • Dot Resolution: 2400 x 600 = 1,440,000 (dots)
  • LCD Brightness: 1,000 cd/m²
  • Contrast Ratio: 500:1
  • Viewing Angle: 140° Horizontal, 120° Vertical
  • Response Time (Tr/Tf): 10/15ms (Typ.)
  • Touch Screen Interface: USB port
  • Operating Voltage Range: DC 9V ~ 36V
  • Power Supply: DC 12V
  • Power Consumption:  < 14W
  • Operating Temperature:  -4°F ~ 158°F (-20°C ~ 70°C)
  • Storage Temperature:  -22°F ~ 176°F (-30°C ~ 80°C)
  • MTBF (Mean Time Between Failures): > 55,000 Hours
  • Dimension (mm):  228W x 164H x 36D
  • Weight (lb):  2.64

NOTE: This 8" display unit has been replaced by the 802YH.

In a follow up of the 800 series and the 805 series, Xenarc Technologies Corp. added to its 8" line of industrial touch screen display solutions with the introduction of an 8" LED LCD display monitor with a brightness rating of 1,000NIT.  The high brightness of this 8" display monitor, as well as the ruggedized aluminum casing, makes it ideal for outdoor applications.

This rugged and versatile 8" LCD LED display monitor offers superior readability under direct sunlight or high bright lighting.  With our proprietary technology, we are able to increase the brightness rating to 1,000NIT, and the Contrast Ratio to 500:1.  Sunlight readability is further enhanced by its advanced Anti-Reflective coating.

The brushed, anodized aluminum face plate gives this industrial-grade 8" display monitor a modern yet elegant look. The entire enclosure is constructed with aluminum, making the unit strong and ruggedized.

Why do our 8" LCD LED display solutions outlast others at extreme environments? Why do our 8" display monitors have wider temperature range and wider voltage input range? It is because our mission is to offer Industrial Automators, Integrators and Engineers the best HMI display solutions available. By utilizing high grade display monitor components, this 8" monitor is perfect for industrial, in-car computing applications or any other applications where a small form factor, portable and durable 8" displays are required.  Our 8" LCD LED Monitor displays are designed for applications such as but not limited to:

  • Transportation - Marine, Air, Heavy Vehicles, Mining, Weigh Stations, Fleet Management, Telematics, In-Car Computing, Public Transit, Cargo
  • System Integration - Machinery Controls, Factory Automation, Environmental Monitoring, Home Automation, Military, Smart Home
  • Point of Sale - Hospitality, Digital Signage, Self-Service Kiosks, Outdoor Kiosks and Signage, Casino
  • Data Monitoring - Cloud, IioT, Factory 4.0 IoT, Medical, Logistics, Inventory Management, Oil & Gas/Utilities, Law Enforcement, Broadcasting, Veterinary, First Person View

NOTE: This 8" display unit has been replaced by the 802YH.

  • 1000NIT Sunlight Readable with Long Life LED Backlight
  • Adjustable LED Backlight for nighttime use
  • Anti-Glare Coating
  • VGA Input (15 pin D-SUB) x 1 & Video Input x 2
  • Audio Input x 3 / Built-In Speaker
  • 800x600 Native Resolution, 4x3 Aspect Ratio
  • Solid Capacitors for Improved Durability
  • High Performance Image and Video Signal Processor
  • AISS - Advanced Image-Scaling and Shaping
  • Last Input and Power Setting Memory
  • IR Remote Control
  • Auto Power-On upon signal detection
  • Mirror and Vertical Image Flip
  • Function to Disable Front Button(s) and On Screen Text
  • AV2 Auto Switching for Backup Camera
  • 360° Copper Monitor Stand or U-Shape Mount
  • VESA 75mm Mounting Holes
  • 26-Pin Heavy-Duty Connector with Connector Locking
  • Ruggedized Aluminum Casing
  • Supports 9V DC ~ 36V DC
  • "E" Mark Certified for Automotive use
  • FCC, CE, E13 Certification
  • ROHS Compliant
  • 36 Month/3 Year Warranty
  • 30 Day No dead Pixel Guarantee
8" Sunlight Readable LCD Display Monitor with VGA & AV Inputs

NOTE: This product has been replaced by the 802YH.

  • Copper Monitor Stand or U-Shape Mount
  • AC Adaptor or Cigarette Lighter Car Adaptor or 5M Power Lead
  • 1.8M Connection Cable (5M version available separately)

NOTE: This product has been replaced by the 802YH.

  • Screen Size:  Diagonal 8"  (4:3)
  • Physical Resolution: 800 (H)  x 600 (V) SVGA
  • Supported Resolution:  640 x 480 ~ 1600 x 1200
  • Dot Resolution: 2400 x 600 = 1,440,000 (dots)
  • LCD Brightness: 1,000 cd/m²
  • Contrast Ratio: 500:1
  • Viewing Angle: 140° Horizontal, 120° Vertical
  • Response Time (Tr/Tf): 10/15ms (Typ.)
  • Touch Screen Interface: USB port
  • Operating Voltage Range: DC 9V ~ 36V
  • Power Supply: DC 12V
  • Power Consumption:  < 14W
  • Operating Temperature:  -4°F ~ 158°F (-20°C ~ 70°C)
  • Storage Temperature:  -22°F ~ 176°F (-30°C ~ 80°C)
  • MTBF (Mean Time Between Failures): > 55,000 Hours
  • Dimension (mm):  228W x 164H x 36D
  • Weight (lb):  2.64
: *
: *
: *

Model # 802YV
Screen Size 8 - inch
Touchscreen Non-Touch
Video Input VGA
Composite
Brightness 1000NIT
Special Feature Sunlight Readable
