10.1" IP67 Sunlight Readable Optical Bonded Capacitive Touchscreen LED LCD Monitor w/ HDMI, DVI, VGA & AV Inputs

Description

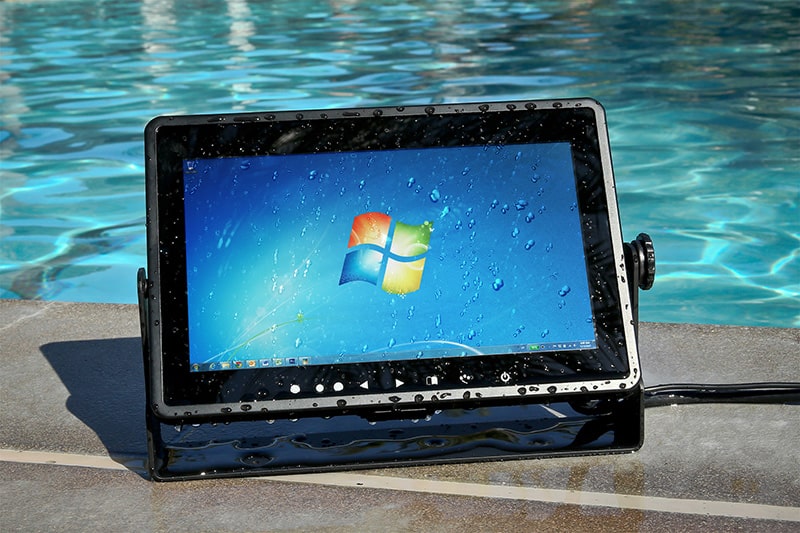

The 1029GNH, built from the chassis of the extremely popular 1029CNH IP65 dust/splash proof display, brings ruggedization to another level.  Not only is this 10.1” monitor IP67 and NEMA6P dust and water proof, it is also optically bonded for better viewing clarity, as well as resistance to any environmental humidity that could cause fogging or condensation in certain situations.  The cabling and connectors are also water tight, giving this monitor further durability and versatility in any environmental situation.  This unit is available without Optical Bonding and with an IP65 rating in the 1029CNH.

The 1029GNH offers all of the innovation and inputs as our 1020 series models along with a capacitive touchscreen panel.  Capacitive sensing provides a more responsive touch interface than resistive touch.  It achieves this by using the capacitance of human skin to detect the proximity or position of the input.  Proximity sensing allows the touch interaction to work even if protective glass or coating is used over the display.  The touch panel is optically bonded to the LCD panel, eliminating the air gap between the two, increasing clarity, contrast, and durability.  Further, because the unit is water tight and air tight, ambient humidity will not affect the clarity or viewability because of the optical bonding.

Why do our products outlast others in extreme conditions? Why do our products have a wider temperature range and a wider voltage input range? It is because our mission is to offer our customers the best products for any situation. By utilizing high grade components, this display is perfect for industrial, in-car computing applications or any other applications where a small, durable, environmentally rugged display is required, including but not limited to:

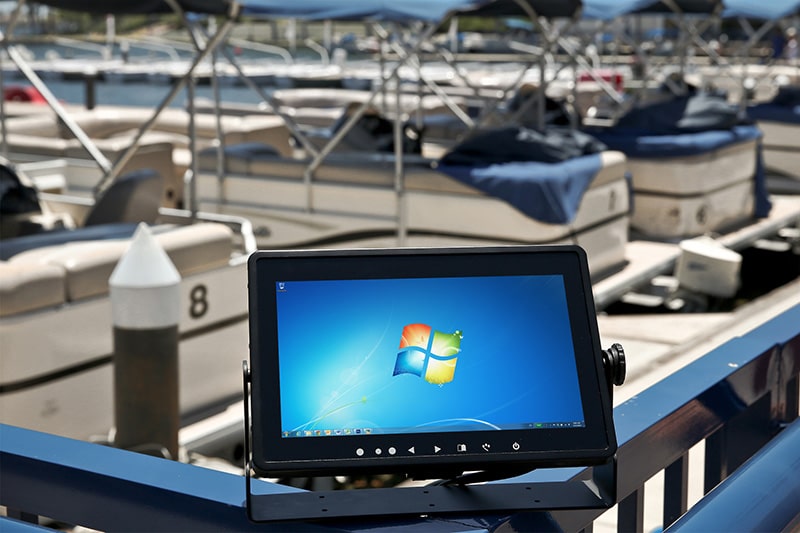

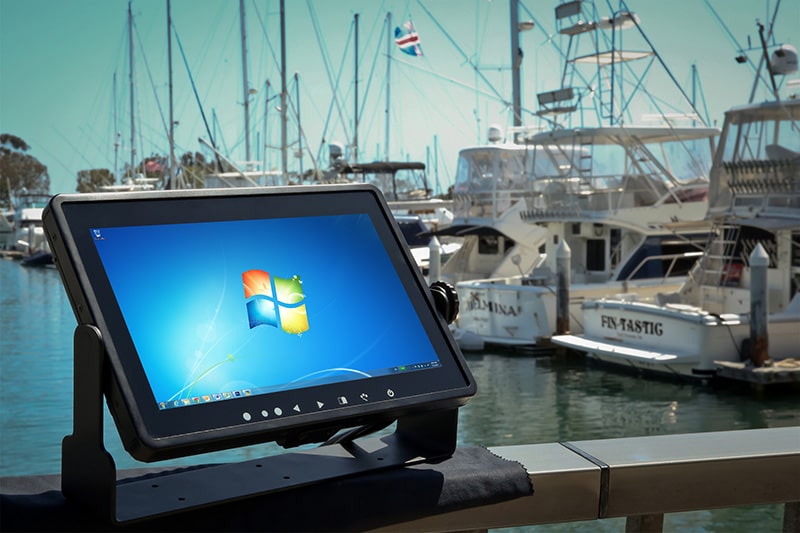

  • Transportation - Marine, Air, Heavy Vehicles, Mining, Weigh Stations, Fleet Management, Telematics, In-Car Computing, Public Transit, Cargo
  • System Integration - Machinery Controls, Factory Automation, Environmental Monitoring, Home Automation, Military, Smart Home
  • Point of Sale - Hospitality, Digital Signage, Self-Service Kiosks, Outdoor Kiosks and Signage, Casino
  • Data Monitoring - Cloud, IoT, Medical, Logistics, Inventory Management, Oil & Gas/Utilities, Law Enforcement, Broadcasting, Veterinary, First Person View
Features

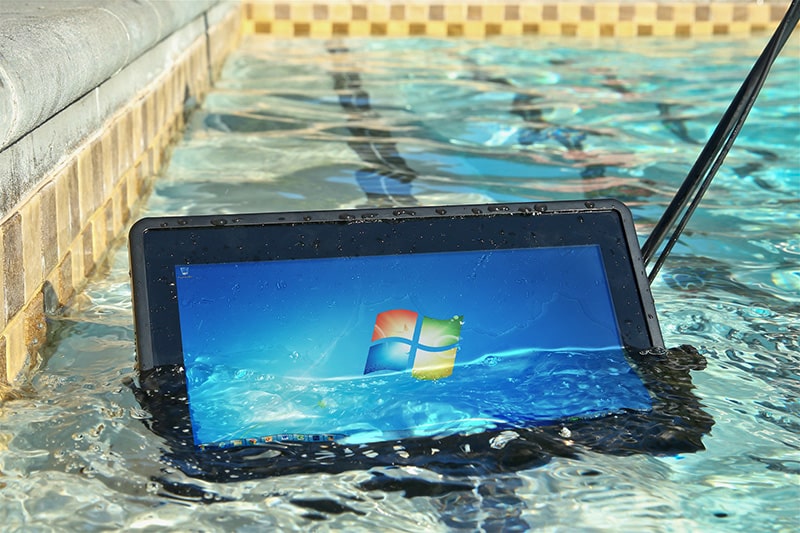

  • IP67 / NEMA6P Rated Water and Dust Resistance
  • 1,000NIT Sunlight Readable with Long Life LED Backlight
  • Automatic Backlight Adjustment through Built-in Ambient Light Sensor
  • Projected Capacitive Multi-Touch Touchscreen (USB)
  • Anti-Reflective and Anti-Fingerprint Coating
  • Plug-N-Play with Windows 7 and up and Android devices (Downloadable drivers for other OS)
  • Multi-Monitor Touchscreen Support
  • HDMI Input x 1 (HDCP), VGA Input (15 pin D-SUB) x 1 & Video Input x 2
  • DVI Input through included DVI to HDMI Adaptor
  • Audio Input x 3 / Built-In Waterproof Speaker
  • 1024x600 Native Resolution, 16x9 Aspect Ratio
  • Solid Capacitors for Improved Durability
  • High Performance Image and Video Signal Processor
  • AISS - Advanced Image-Scaling and Shaping
  • Last Input and Power Setting Memory
  • IR Remote Control
  • Auto Power-On upon signal detection
  • Mirror and Vertical Image Flip
  • Function to Disable Front Button(s) and On Screen Text
  • AV2 Auto Switching for Backup Camera

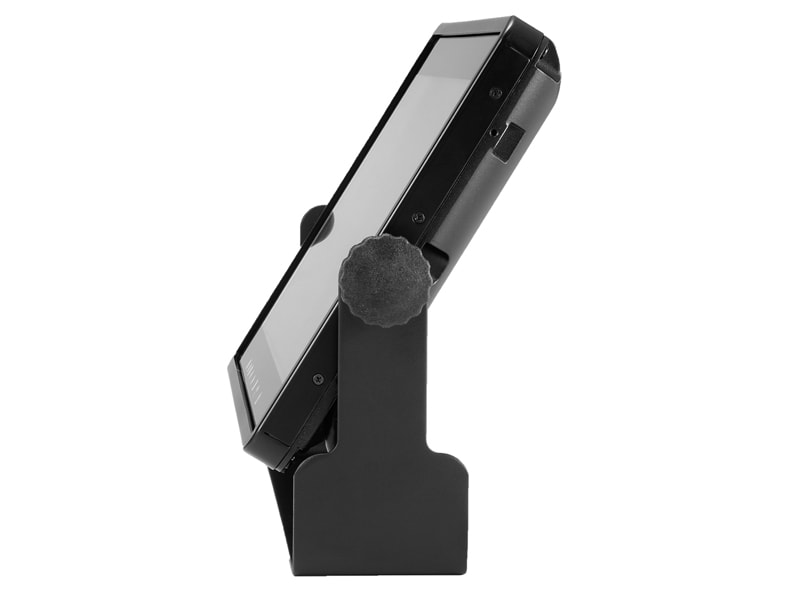

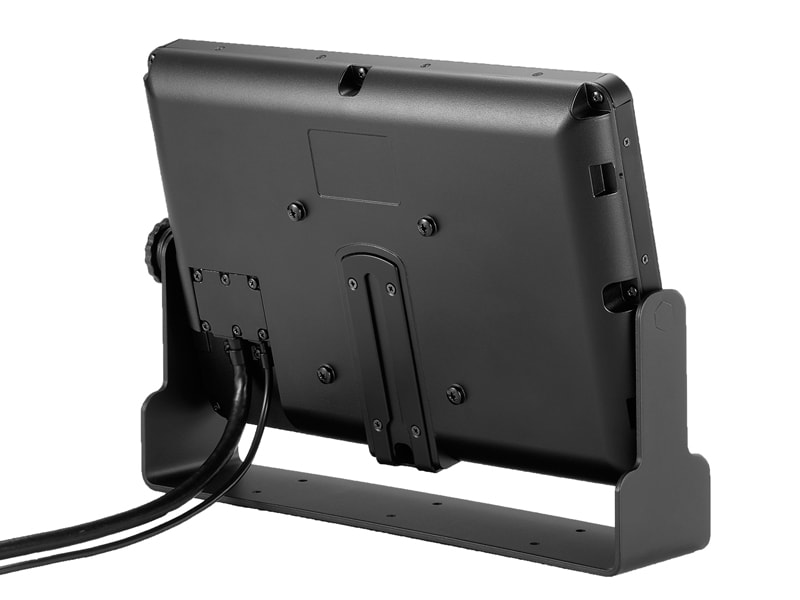

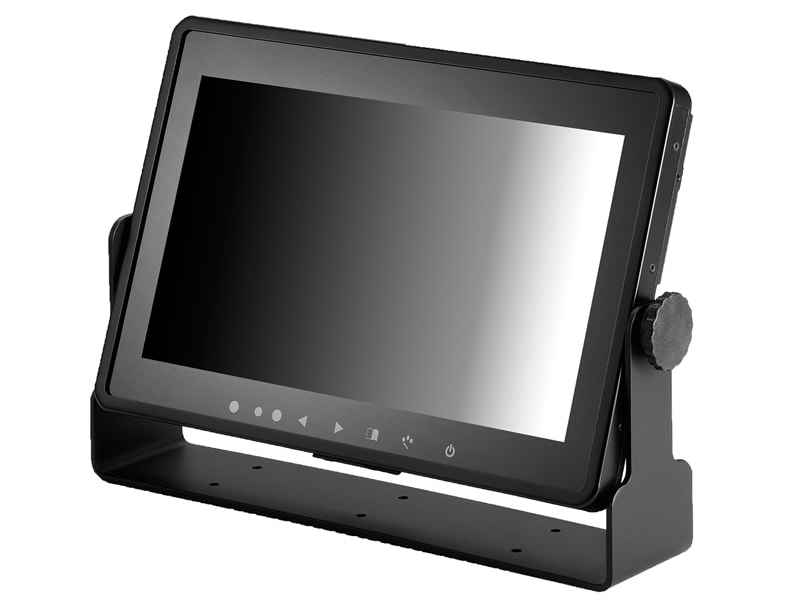

  • 360° Copper Monitor Stand or U-Shape Mount
  • VESA 75mm Mounting Holes
  • 26-Pin Heavy-Duty Connector with Connector Locking
  • Ruggedized Aluminum Casing
  • Supports 9V DC ~ 36V DC
  • "E" Mark Certified for Automotive use
  • FCC, CE, E13 Certification
  • ROHS Compliant
  • 24 Month Warranty
  • 30 Day No dead Pixel Guarantee
Function Diagram
10.1" IP67 Sunlight Readable Optical Bonded Capacitive Touchscreen LED LCD Monitor w/ HDMI, DVI, VGA & AV Inputs
Package Contents

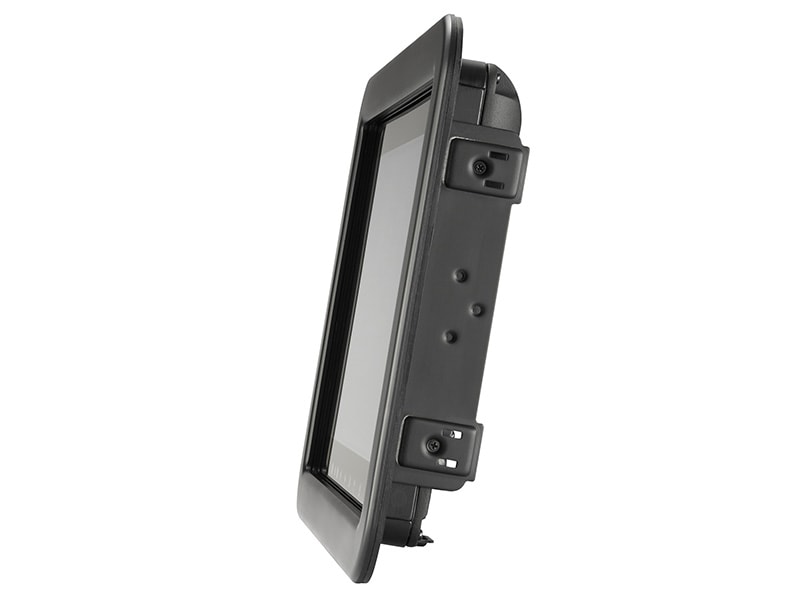

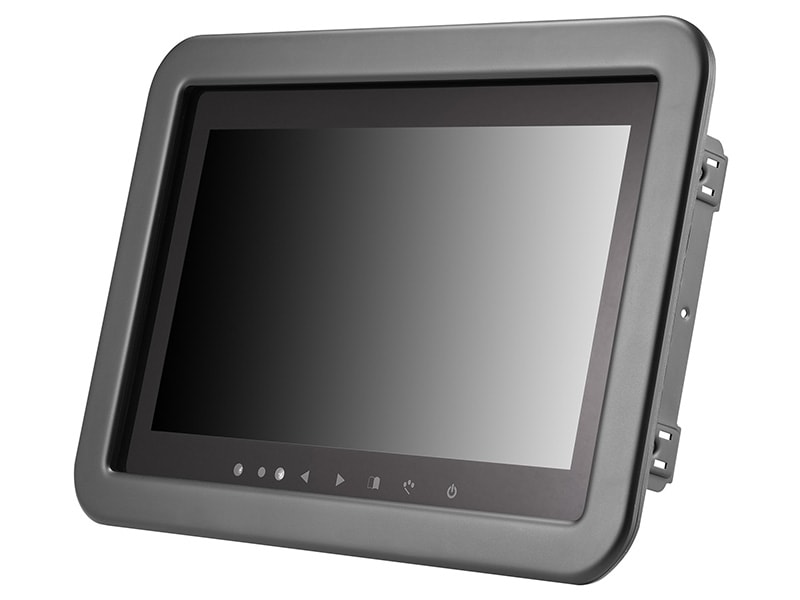

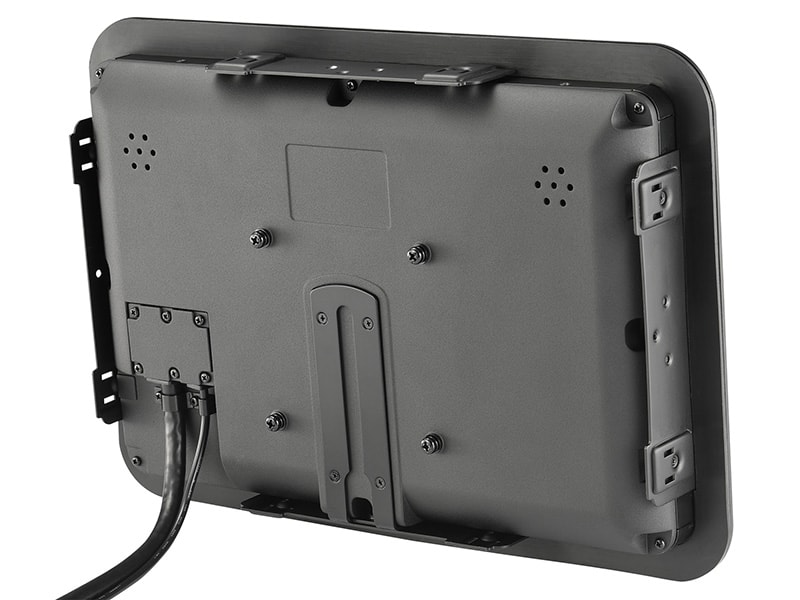

  • Copper Monitor Stand or U-Shape Mount or Panel Mount Bracket
  • 5M Power Lead (IP67) or AC Adaptor (IP65) or Cigarette Lighter Car Adaptor (IP65)
  • 1.8 Meter Cable or 5 Meter Cable or 2 Feet Cable with only HDMI & USB,or 2 Feet Cable with only VGA & USB
Specification
  • Screen Size: Diagonal 10.1"  (16:9)
  • Physical Resolution: 1024 (H)  x 600 (V) WXGA
  • Supported Resolution: 640 x 480 ~ 1920 x 1080
  • Dot Resolution: 3072 x 600 = 1,843,200 (dots)
  • Brightness: 1000 cd/m²
  • Contrast Ratio: 600:1
  • Viewing Angle: 140° Horizontal, 120° Vertical
  • Response Time (Tr/Tf): 5/20ms (Typ.)
  • Touch Screen Interface: USB port
  • Operating Voltage Range: DC 9V ~ 36V
  • Power Supply: DC 12V
  • Power Consumption: ≤ 20W
  • Operating Temperature: -4°F ~ 158°F (-20°C ~ 70°C)
  • Storage Temperature: -22°F ~ 176°F (-30°C ~ 80°C)
  • MTBF (Mean Time Between Failures): > 55,000 Hours
  • Dimension (mm): 265.7W x 178.2H x 32.2D
  • Weight (lb): 3.64

The 1029GNH, built from the chassis of the extremely popular 1029CNH IP65 dust/splash proof display, brings ruggedization to another level.  Not only is this 10.1” monitor IP67 and NEMA6P dust and water proof, it is also optically bonded for better viewing clarity, as well as resistance to any environmental humidity that could cause fogging or condensation in certain situations.  The cabling and connectors are also water tight, giving this monitor further durability and versatility in any environmental situation.  This unit is available without Optical Bonding and with an IP65 rating in the 1029CNH.

The 1029GNH offers all of the innovation and inputs as our 1020 series models along with a capacitive touchscreen panel.  Capacitive sensing provides a more responsive touch interface than resistive touch.  It achieves this by using the capacitance of human skin to detect the proximity or position of the input.  Proximity sensing allows the touch interaction to work even if protective glass or coating is used over the display.  The touch panel is optically bonded to the LCD panel, eliminating the air gap between the two, increasing clarity, contrast, and durability.  Further, because the unit is water tight and air tight, ambient humidity will not affect the clarity or viewability because of the optical bonding.

Why do our products outlast others in extreme conditions? Why do our products have a wider temperature range and a wider voltage input range? It is because our mission is to offer our customers the best products for any situation. By utilizing high grade components, this display is perfect for industrial, in-car computing applications or any other applications where a small, durable, environmentally rugged display is required, including but not limited to:

  • Transportation - Marine, Air, Heavy Vehicles, Mining, Weigh Stations, Fleet Management, Telematics, In-Car Computing, Public Transit, Cargo
  • System Integration - Machinery Controls, Factory Automation, Environmental Monitoring, Home Automation, Military, Smart Home
  • Point of Sale - Hospitality, Digital Signage, Self-Service Kiosks, Outdoor Kiosks and Signage, Casino
  • Data Monitoring - Cloud, IoT, Medical, Logistics, Inventory Management, Oil & Gas/Utilities, Law Enforcement, Broadcasting, Veterinary, First Person View
  • IP67 / NEMA6P Rated Water and Dust Resistance
  • 1,000NIT Sunlight Readable with Long Life LED Backlight
  • Automatic Backlight Adjustment through Built-in Ambient Light Sensor
  • Projected Capacitive Multi-Touch Touchscreen (USB)
  • Anti-Reflective and Anti-Fingerprint Coating
  • Plug-N-Play with Windows 7 and up and Android devices (Downloadable drivers for other OS)
  • Multi-Monitor Touchscreen Support
  • HDMI Input x 1 (HDCP), VGA Input (15 pin D-SUB) x 1 & Video Input x 2
  • DVI Input through included DVI to HDMI Adaptor
  • Audio Input x 3 / Built-In Waterproof Speaker
  • 1024x600 Native Resolution, 16x9 Aspect Ratio
  • Solid Capacitors for Improved Durability
  • High Performance Image and Video Signal Processor
  • AISS - Advanced Image-Scaling and Shaping
  • Last Input and Power Setting Memory
  • IR Remote Control
  • Auto Power-On upon signal detection
  • Mirror and Vertical Image Flip
  • Function to Disable Front Button(s) and On Screen Text
  • AV2 Auto Switching for Backup Camera
  • 360° Copper Monitor Stand or U-Shape Mount
  • VESA 75mm Mounting Holes
  • 26-Pin Heavy-Duty Connector with Connector Locking
  • Ruggedized Aluminum Casing
  • Supports 9V DC ~ 36V DC
  • "E" Mark Certified for Automotive use
  • FCC, CE, E13 Certification
  • ROHS Compliant
  • 24 Month Warranty
  • 30 Day No dead Pixel Guarantee
10.1" IP67 Sunlight Readable Optical Bonded Capacitive Touchscreen LED LCD Monitor w/ HDMI, DVI, VGA & AV Inputs
  • Copper Monitor Stand or U-Shape Mount or Panel Mount Bracket
  • 5M Power Lead (IP67) or AC Adaptor (IP65) or Cigarette Lighter Car Adaptor (IP65)
  • 1.8 Meter Cable or 5 Meter Cable or 2 Feet Cable with only HDMI & USB,or 2 Feet Cable with only VGA & USB
  • Screen Size: Diagonal 10.1"  (16:9)
  • Physical Resolution: 1024 (H)  x 600 (V) WXGA
  • Supported Resolution: 640 x 480 ~ 1920 x 1080
  • Dot Resolution: 3072 x 600 = 1,843,200 (dots)
  • Brightness: 1000 cd/m²
  • Contrast Ratio: 600:1
  • Viewing Angle: 140° Horizontal, 120° Vertical
  • Response Time (Tr/Tf): 5/20ms (Typ.)
  • Touch Screen Interface: USB port
  • Operating Voltage Range: DC 9V ~ 36V
  • Power Supply: DC 12V
  • Power Consumption: ≤ 20W
  • Operating Temperature: -4°F ~ 158°F (-20°C ~ 70°C)
  • Storage Temperature: -22°F ~ 176°F (-30°C ~ 80°C)
  • MTBF (Mean Time Between Failures): > 55,000 Hours
  • Dimension (mm): 265.7W x 178.2H x 32.2D
  • Weight (lb): 3.64
: *
: *
: *

Model # 1029GNH
Screen Size 10 - inch
Touchscreen Capacitive
Video Input Composite
VGA
DVI
HDMI
Brightness 1000NIT
Special Feature Sunlight Readable
Waterproof
