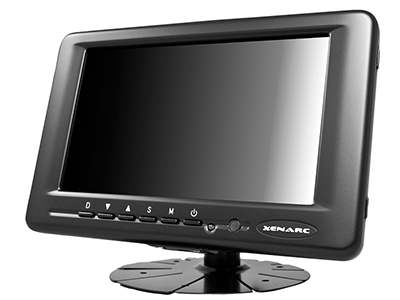

7" Sunlight Readable Touchscreen LCD Display Monitor with VGA & AV Inputs

7" Sunlight Readable Touchscreen LCD Monitor with VGA & AV Inputs
7" VGA Monitor, 7" Touchscreen LCD Monitor with USB Display Interface & AV Inputs, 7 inch lcd led monitor display touch screen, small form factor, mini, portable, 7 inch touchscreen 7" Touchscreen LCD Monitor with USB Display Interface & AV Inputs, 7 inch lcd led monitor display touch screen, small form factor, mini, portable, 7 inch touchscreen 7" Touchscreen LCD Monitor with USB Display Interface & AV Inputs, 7 inch lcd led monitor display touch screen, small form factor, mini, portable, 7 inch touchscreen
Description

Xenarc Technologies Corp. is one of the first small form factor display manufacturers to introduce a 7" LED LCD touchscreen display monitor with a brightness rating of 1,000NIT. The high brightness of this 7" VGA monitor makes it ideal for outdoor applications under direct sunlight, as well as any other applications where a bright, non-reflective display may be effective.  This 7" VGA touchscreen display monitor has been replaced by the 702CSH.

This popular 7 inch VGA monitor offers superior readability under sunlight.  With our proprietary technology, we are able to increase the brightness rating to 1,000NIT, and the Contrast Ratio to 500:1.  Sunlight readability is further enhanced by its advanced Anti-Reflective coating.  The 7" vga touchscreen monitor also comes with a detachable aluminum front bezel, suitable for flush installations, that can easily be put back into place.  Our 7" VGA displays are designed for applications such as but not limited to:

  • Transportation - Marine, Air, Heavy Vehicles, Mining, Weigh Stations, Fleet Management, Telematics, In-Car Computing, Public Transit, Cargo
  • System Integration - Machinery Controls, Factory Automation, Environmental Monitoring, Home Automation, Military, Smart Home
  • Point of Sale - Hospitality, Digital Signage, Self-Service Kiosks, Outdoor Kiosks and Signage, Casino
  • Data Monitoring - Cloud, IoT, Medical, Logistics, Inventory Management, Oil & Gas/Utilities, Law Enforcement, Broadcasting, Veterinary, First Person View
  • Broadcast & Production - Broadcast Stations, Mobile Production Vehicles, Field Rugged Deployment for your mobile workforce, Studio Video Production
Features
  • For In-Car Computing, PC, Server, GPS, and various VGA Use
  • Sunlight Readable for outdoor applications
  • High Brightness, High Contrast LCD Panel
  • Anti-Reflective coating
  • 5-wire resistive Touch Screen (USB)
  • Multi-Monitor Touchscreen Support
  • VGA Input (15 pin D-SUB) x 1 & Video Input x 2
  • Audio Input / Built-in Speaker
  • NTSC / PAL Multi-System
  • 16x9 Aspect Ratio
  • High Resolution Display
  • Auto detects 800x480 resolution
  • Upgraded High-Brightness LED Backlight
  • Adjustable backlight level for night-time use
  • Pixelworks High Performance Image and Video Signal Processor
  • AISS - Advanced Image-Scaling and Shaping
  • 16:9 / 4:3 Scaler settings
  • Last Input memory
  • Last Power setting memory
  • IR Remote Control
  • Auto power-on upon signal detection
  • Automatic display adjustment
  • On Screen Display Control
  • Mirror Image Flip (VGA and Video Modes)
  • Vertical Image Flip (VGA and Video Modes)
  • Copper Stand: 360° / Height Adjustment
  • 20-Pin heavy-duty connector
  • Anti Reflective Coating
  • Supports 11V DC ~ 32V DC
  • "E" Mark Certified for Automotive use
  • FCC, CE, E13 Certification
  • ROHS Compliant
  • 36 Month/3 Year Warranty
  • 30 Day No dead Pixel Guarantee
Function Diagram
7" Sunlight Readable Touchscreen LCD Monitor with VGA & AV Inputs
Package Contents
  • Copper Monitor Stand
  • AC Adaptor or Cigarette Lighter Car Adaptor or 5M Power Lead
  • 1.8M Connection Cable
  • Stylus
Specification
  • Screen Size:  Diagonal 7"  (16:9)
  • Physical Resolution: 800 (H)  x 480 (V) WVGA
  • Supported Resolution:  640 x 480 ~ 1366 x 768
  • Dot Resolution: 2400 x 480 = 1,152,000 (dots)
  • LCD Brightness: 1,000 cd/m²
  • Contrast Ratio: 400:1
  • Viewing Angle: 140° Horizontal, 100° Vertical
  • Response Time (Tr/Tf): 12/18ms (Typ.)
  • Touch Screen Interface: USB port
  • Operating Voltage Range: DC 10V ~ 32V
  • Power Supply: DC 12V
  • Power Consumption:  <10W
  • Operating Temperature:  14°F ~ 149°F
  • Storage Temperature:  -22°F ~ 158°F
  • MTBF (Mean Time Between Failures): > 55,000 Hours or > 6.2 Years of continuous operation
  • Dimension (mm):  200W x 131H x 35D
  • Weight (lb):  1.53

Xenarc Technologies Corp. is one of the first small form factor display manufacturers to introduce a 7" LED LCD touchscreen display monitor with a brightness rating of 1,000NIT. The high brightness of this 7" VGA monitor makes it ideal for outdoor applications under direct sunlight, as well as any other applications where a bright, non-reflective display may be effective.  This 7" VGA touchscreen display monitor has been replaced by the 702CSH.

This popular 7 inch VGA monitor offers superior readability under sunlight.  With our proprietary technology, we are able to increase the brightness rating to 1,000NIT, and the Contrast Ratio to 500:1.  Sunlight readability is further enhanced by its advanced Anti-Reflective coating.  The 7" vga touchscreen monitor also comes with a detachable aluminum front bezel, suitable for flush installations, that can easily be put back into place.  Our 7" VGA displays are designed for applications such as but not limited to:

  • Transportation - Marine, Air, Heavy Vehicles, Mining, Weigh Stations, Fleet Management, Telematics, In-Car Computing, Public Transit, Cargo
  • System Integration - Machinery Controls, Factory Automation, Environmental Monitoring, Home Automation, Military, Smart Home
  • Point of Sale - Hospitality, Digital Signage, Self-Service Kiosks, Outdoor Kiosks and Signage, Casino
  • Data Monitoring - Cloud, IoT, Medical, Logistics, Inventory Management, Oil & Gas/Utilities, Law Enforcement, Broadcasting, Veterinary, First Person View
  • Broadcast & Production - Broadcast Stations, Mobile Production Vehicles, Field Rugged Deployment for your mobile workforce, Studio Video Production
  • For In-Car Computing, PC, Server, GPS, and various VGA Use
  • Sunlight Readable for outdoor applications
  • High Brightness, High Contrast LCD Panel
  • Anti-Reflective coating
  • 5-wire resistive Touch Screen (USB)
  • Multi-Monitor Touchscreen Support
  • VGA Input (15 pin D-SUB) x 1 & Video Input x 2
  • Audio Input / Built-in Speaker
  • NTSC / PAL Multi-System
  • 16x9 Aspect Ratio
  • High Resolution Display
  • Auto detects 800x480 resolution
  • Upgraded High-Brightness LED Backlight
  • Adjustable backlight level for night-time use
  • Pixelworks High Performance Image and Video Signal Processor
  • AISS - Advanced Image-Scaling and Shaping
  • 16:9 / 4:3 Scaler settings
  • Last Input memory
  • Last Power setting memory
  • IR Remote Control
  • Auto power-on upon signal detection
  • Automatic display adjustment
  • On Screen Display Control
  • Mirror Image Flip (VGA and Video Modes)
  • Vertical Image Flip (VGA and Video Modes)
  • Copper Stand: 360° / Height Adjustment
  • 20-Pin heavy-duty connector
  • Anti Reflective Coating
  • Supports 11V DC ~ 32V DC
  • "E" Mark Certified for Automotive use
  • FCC, CE, E13 Certification
  • ROHS Compliant
  • 36 Month/3 Year Warranty
  • 30 Day No dead Pixel Guarantee
7" Sunlight Readable Touchscreen LCD Monitor with VGA & AV Inputs
  • Copper Monitor Stand
  • AC Adaptor or Cigarette Lighter Car Adaptor or 5M Power Lead
  • 1.8M Connection Cable
  • Stylus
  • Screen Size:  Diagonal 7"  (16:9)
  • Physical Resolution: 800 (H)  x 480 (V) WVGA
  • Supported Resolution:  640 x 480 ~ 1366 x 768
  • Dot Resolution: 2400 x 480 = 1,152,000 (dots)
  • LCD Brightness: 1,000 cd/m²
  • Contrast Ratio: 400:1
  • Viewing Angle: 140° Horizontal, 100° Vertical
  • Response Time (Tr/Tf): 12/18ms (Typ.)
  • Touch Screen Interface: USB port
  • Operating Voltage Range: DC 10V ~ 32V
  • Power Supply: DC 12V
  • Power Consumption:  <10W
  • Operating Temperature:  14°F ~ 149°F
  • Storage Temperature:  -22°F ~ 158°F
  • MTBF (Mean Time Between Failures): > 55,000 Hours or > 6.2 Years of continuous operation
  • Dimension (mm):  200W x 131H x 35D
  • Weight (lb):  1.53
: *
: *
: *

Model # 702TSV
Screen Size 7 - inch
Touchscreen 5W Resistive
Video Input VGA
Composite
Brightness 1000NIT
Special Feature Sunlight Readable
