IP65 Ingress Protection Solutions

Please use the product filter below to help you find an IP65 rated waterproof LCD monitor or touchscreen solution that is suitable for your application or system integration project.  Read The Guide to Sanitizing your Waterproof Touchscreen here!  Click here to compare all 7", 8",9", 10", 12", 15", 18", 24".

Filter Product by: Screen Size Touchscreen Video Input Special Feature
List all
Screen Size
Touchscreen
Video Input
Special Feature
Instruction
Product Filter system allow you to narrow your product search, quickly finding your ideal product.
It also allow multiple selections!
Check to compare
1029CNH - 10.1" IP65 Water Resistant, Sunlight Readable, Capacitive Touchscreen LCD Monitor with HDMI, DVI, VGA & AV Inputs
IP65 / NEMA4 Water and Dust Resistance; 1200NIT High Brightness LED Backlight, Ambient Light Sensor; Sunlight Readable; Projected Capacitive Multi-Touch Touch Screen with USB Interface; HDMI / DVI Input x 1, VGA Input x 1, Video Input × 2; Native Resolution: 1280 x 800 HD; Ruggedized Aluminum Casing ......For more information
1029GNH - 10.1" IP67 Waterproof Sunlight Readable Optically Bonded Small Capacitive Touchscreen LCD Monitor with HDMI, DVI, VGA & AV Inputs
IP67 / NEMA6P Water and Dust Resistance; 1200NIT High Brightness LED Backlight, Ambient Light Sensor; Sunlight Readable; Projected Capacitive Multi-Touch Touch Screen with USB Interface; HDMI / DVI Input x 1, VGA Input x 1, Video Input × 2; Native Resolution: 1280 x 800 HD; Ruggedized Aluminum Casing ......For more information
1219GNH - 12.1 inch IP67 Sunlight Readable Optical Bonded Capacitive Touchscreen LCD Display Monitor with HDMI, DVI, VGA & AV Inputs & HDMI Video Output
Full IP67 / NEMA6P Water and Dust Resistance; 1000NIT High Brightness LED Backlight, Ambient Light Sensor; Sunlight Readable; Projected Capacitive Multi-Touch Touch Screen with USB Interface; HDMI / DVI Input x 2, HDMI Output x 1 , VGA Input x 1, Video Input × 2; Native Resolution: 1280 x 800 HD; Ruggedized enclosure with Anodized Aluminum Front Frame and SUS304 Stainless Steel Back Casing ......For more information
1219GNC - 12.1 inch IP67 Sunlight Readable Optical Bonded Capacitive Touchscreen LCD Display Monitor with USB-C, HDMI, DVI, VGA & AV Inputs
Full IP67 / NEMA6P Water and Dust Resistance; 1000NIT High Brightness LED Backlight, Ambient Light Sensor; Sunlight Readable; Projected Capacitive Multi-Touch Touch Screen with USB Interface; HDMI / DVI Input x 1, USB-C Input x 1, VGA Input x 1, Video Input × 2; Native Resolution: 1280 x 800 HD; Ruggedized enclosure with Anodized Aluminum Front Frame and SUS304 Stainless Steel Back Casing ......For more information
1219GNS - 12.1" IP67 Sunlight Readable Optical Bonded Capacitive Small Touchscreen LCD Monitor with SDI, HDMI, DVI, VGA & AV Inputs & HDMI, SDI Video Output
Full IP67 / NEMA6P Water and Dust Resistance; 1000NIT High Brightness LED Backlight, Ambient Light Sensor; Sunlight Readable; Projected Capacitive Multi-Touch Touch Screen with USB Interface; SDI Input x 1, SDI Ouptut x 1, HDMI / DVI Input x 1, HDMI Output x 1, VGA Input x 1, Video Input × 2; Native Resolution: 1280 x 800 HD; Ruggedized enclosure with Anodized Aluminum Front Frame and SUS304 Stainless Steel Back Casing ......For more information
1569GNH - 15.6 inch IP67 Sunlight Readable Optical Bonded Capacitive Touchscreen LCD Display Monitor with HDMI, DVI, VGA & AV Inputs & HDMI Video Output
Full IP67 / NEMA6P Water and Dust Resistance; 1000NIT High Brightness LED Backlight, Ambient Light Sensor; Sunlight Readable; Projected Capacitive Multi-Touch Touch Screen with USB Interface; HDMI / DVI Input x 2, HDMI Output x 1 , VGA Input x 1, Video Input × 2; Native Resolution: 1920 x 1080 Full HD; Ruggedized enclosure with Anodized Aluminum Front Frame and SUS304 Stainless Steel Back Casing ......For more information
2409CNH - 24 inch IP69K Sunlight Readable Capacitive Touchscreen LCD Display Monitor with HDMI, DVI & VGA Inputs
IP69K High Temperature High Pressure Spray Down Resistance, IP66 / NEMA4X Water and Dust Resistance; 1000NIT High Brightness LED Backlight, Ambient Light Sensor; Sunlight Readable; Projected Capacitive Multi-Touch Touch Screen with USB Interface; HDMI / DVI Input x 1, VGA Input x 1; Native Resolution: 1920 x 1080 HD; Ruggedized Stainless Steel Casing ......For more information
2409YNH - 24 inch IP69K Sunlight Readable LCD Display Monitor with HDMI, DVI & VGA Inputs
IP69K High Temperature High Pressure Spray Down Resistance, IP66 / NEMA4X Water and Dust Resistance; 1000NIT High Brightness LED Backlight, Ambient Light Sensor; Sunlight Readable; HDMI / DVI Input x 1, VGA Input x 1; Native Resolution: 1920 x 1080 HD; Ruggedized Stainless Steel Casing ......For more information
709CNH - 7" IP65 Sunlight Readable Capacitive Touchscreen LCD Small Monitor with HDMI, DVI, VGA & AV Inputs
IP65 / NEMA4 Water and Dust Resistant small monitor ; 1000NIT High Brightness LED Backlight, Ambient Light Sensor; Sunlight Readable; Projected Capacitive Multi-Touch small touchscreen with USB Interface; HDMI / DVI Video Signal Input x 1, VGA Video Signal Input x 1, Video Signal Input × 2; Native Resolution: 1024 x 600 WXGA; Ruggedized Aluminum Casing ......For more information
709GNK - 7" IP67 Sunlight Readable Capacitive Touchscreen LCD Display Monitor with HDMI Input
IP67 / NEMA6P Water and Dust Resistant Touchscreen monitor ; 1000NIT High Brightness LED Backlight, Ambient Light Sensor; Sunlight Readable; Projected Capacitive Multi-Touch Touchscreen with USB Interface; HDMI / DVI Video Signal Input x 1; Native Resolution: 1024 x 600 WXGA; Ruggedized Aluminum Casing ......For more information
892CFH - 8" Front IP65 Sunlight Readable Capacitive Touchscreen LCD Monitor with HDMI Inputs
IP65 / NEMA4 Water and Dust Resistant (Front Only) monitor ; 1000NIT High Brightness LED Backlight, Ambient Light Sensor; Sunlight Readable; Projected Capacitive Multi-Touch T ouchscreen with USB Interface; HDMI / DVI Video Signal Input x 2; Native Resolution: 1280 x 720 HD ......For more information
892GFC - 8" Front IP65 Sunlight Readable Capacitive Touchscreen LCD Monitor with HDMI, USB-C Inputs
IP65 / NEMA4 Water and Dust Resistant (Front Only) monitor ; 1000NIT High Brightness LED Backlight, Ambient Light Sensor; Sunlight Readable; Projected Capacitive Multi-Touch T ouchscreen with USB Interface; HDMI / DVI Video Signal Input x 2, USB-C 3.2 Input x 1; Native Resolution: 1280 x 720 HD ......For more information

What are IP65 Enclosure Characteristics:

  • Complete protection from dust, oil, and other non-corrosive material
  • Complete protection from contact with enclosed equipment
  • Protection from water, up to water projected by a nozzle against enclosure from any direction
  • Able to protect against water jets
  • Water projected by a nozzle (6.3 mm) against enclosure from any direction shall have no harmful effects.
  • Test duration: at least 15 minutes; Water volume: 12.5 liters per minute;
    Pressure: 30 kPa at distance of 3 m

It is often confusing for an engineer to know what type of rating they require when they're looking for a “waterproof” touchscreen solution.  Much like with watches and other electronics, there is a big difference between waterproof, water resistant, and other descriptive, but not specific,
labels.  To help out, there are several rating systems that have been developed and several testing agencies that verify the results. Among these, the two best known are NEMA and IP. We will cover the IP system here.

IP65 Ingress Protection Touchscreen and LCD Monitor Solutions https://www.xenarc.com

What is an IP Rating?

IP rating is also known as Ingress Protection or International Protection ratings which are defined by the international standard of EN 60529 (British BS EN 60529:1992). This standard is used to define the effectiveness of sealing electrical enclosures against intrusion from foreign bodies such as tools, dirt and moisture.

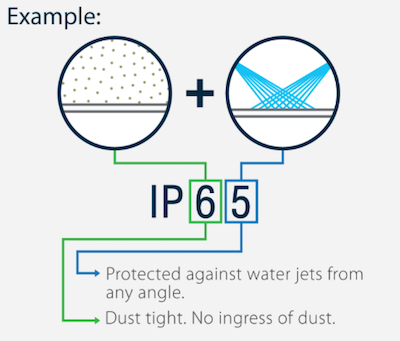

What do the two digits in an IP Rating mean?

The rating consists of the letters IP followed by two digits; if a number is replaced by X, this indicates that the enclosure is not rated for that specification.

IP65   =  First Digit - Solids

The first digit indicates the level of protection that the enclosure provides against hazardous parts (electrical conductors, moving parts, etc.) and the ingress of solid foreign objects.

IP65   =  Second Digit - Liquids

The second digit defines the protection that the enclosure provides against various forms of moisture (drips, sprays, submersion etc.).

What is the difference between IP65, IP67, IP68 & IP69K?

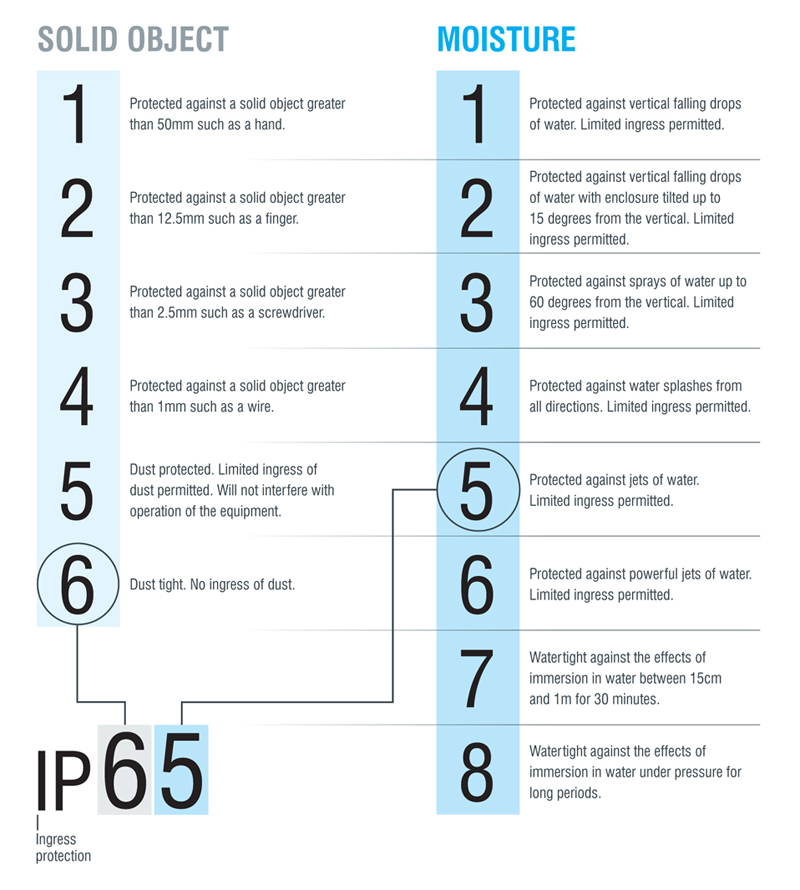

The differences between commonly sold IP65, IP67, IP68 & IP69K certified display solutions from Xenarc Technologies are slight, but very important. Using the above chart as a guide, we can see that all of these touchscreen and LCD monitor solutions are protected at the highest level from solids and dust. The variations come with the protection against liquids.

IP65 = Water resistant. “Protected against water jets from any angle” *Do NOT submerge IP65 touchscreens and LCD Monitors, as these are not waterproof.

IP67 = Water Proof. “Protected against the events of temporary/long term submersion (10 minutes or more)”*You can submerge IP67 displays for extended periods; our IP67 rated touchscreen and LCD monitor solutions can be submerged and come with IP67 rated power chords and connectors.

IP68 = Waterproof. “Protected against the events of permanent submersion up to 3 meters”

IP69K = The highest rating one could possibly achieve is IP69K. This superior IP rating suggests complete protection from dust and protection from steam-jet cleaning (water temperatures of -22F (-30C) to 158F (70C)). Some regulations, including IEC 60529, refer to the testing of IP69K as IPx9.

What IP Rating Will You Need?

If you don’t anticipate a harsh environment that is extremely dusty or wet then a lower IP rating would suffice.

Applications that involve a lot of dust, debris, or potential to be in contact with any solids or liquids, you’ll want to make sure that the IP ratings are higher and that you have adequate water resistance on the touchscreen or LCD monitor solutions you utilize.

Examples of IP Ratings and Uses

Low IP ratings are appropriate for:

- Indoor use
- Protected use inside sealed products
- Inside sealed signage
- When using aluminum extrusions

High IP ratings are appropriate for:

- Unsealed outdoor locations
- Places that have a lot of debris
- Areas with heavy foot traffic
- High splash areas
- High contact areas (people touching them)
- Wet locations

Other Common Questions Asked:

Is IP65 waterproof?

Is IP65 suitable for outdoor use?

What IP rating is waterproof?

Which is better IP65 or IP67?

Why do our Ingress Protection (IP) touchscreen monitor solutions outlast others in extreme conditions? Why do our rugged touchscreen and LCD monitors have a wider temperature range and a wider voltage input range? It is because our mission is to offer engineers, automators and system integrators the best products for any situation.

By utilizing high grade components, this display is perfect for industrial, in-car computing applications or any other applications where a small, durable, environmentally rugged display is required, including but not limited to:

  • Transportation - Marine, Air, Heavy Vehicles, Mining, Weigh Stations, Fleet Management, Telematics, In-Car Computing, Public Transit, Cargo
  • System Integration - Machinery Controls, Factory Automation, Environmental Monitoring, Home Automation, Military, Smart Home
  • Point of Sale - Hospitality, Digital Signage, Self-Service Kiosks, Outdoor Kiosks and Signage, Casino
  • Data Monitoring - Cloud, IoT, Medical, Logistics, Inventory Management, Oil & Gas/Utilities, Law Enforcement, Broadcasting, Veterinary, First Person View
  • Broadcast & Production - Broadcast Stations, Mobile Production Vehicles, Field Rugged Deployment for your mobile workforce, Studio Video Production
